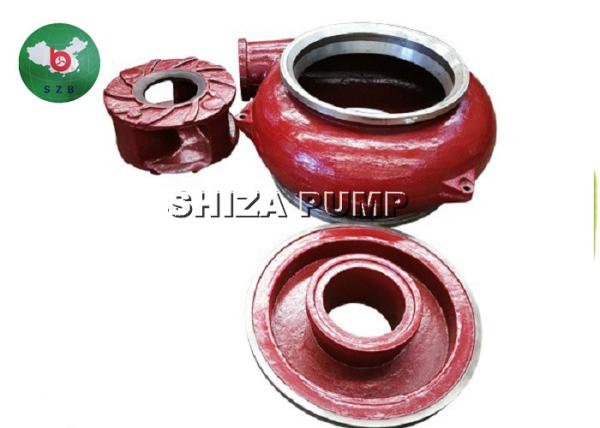

8 / 6E - G Sand Gravel Volute Pump Replacement Parts EG6131 Horizontal WM
Gravel pump spare parts material :
High chrome alloy: A05, A07, A49, etc.
Natural rubber: R08, R26, R33, R55, etc.
Other materials can be supplied as requirements .
Our service
1. Quick Reply
The inquiry will get reply within 24 hours
2. Pump and parts selection
Please let us know the application, capacity and head ,We can help to select the suitable pump
tell me the parts code or drawing so that we can quote parts price
3. Technical Surport .
We have a group of high quality technicians with rich experience who can solve everything during the whole process.
4. Guarantee quality.
All the products have been proved by ISO 9001:2008, CE, SGS. And all the pump and parts will be inspected strictly before delivery.
5. Perfect after -sales
Whenever there are quality problems, we will be responsible
6. OEM Mechanical Parts and Fabrication Service
We can produce the mechanicalparts according to the drawing or sample
Many material are available ,like High chrome, rubber , stainless steel and cast Iron
We also provide OEM service according to customer's special requirements .
Here we list some OEM part codes for reference:
Impeller: 127, 147, 145, etc., such as C2127, D3147, E4147, F6147, G8147, G10147, FAM1247...
Volute liner, C2110, D3110, E4110, F6110, G10110, G12110, ...
G(H) gravel pump material list for parts:
| PUMP PARTS LIST |
| Part Name |
Material |
Specification |
HRC |
Application |
OEM Code |
| Liners & impellers |
Metal |
AB27: 23%-30% chrome white iron |
≥56 |
Used for higher wear condition with pH between 5 and 12 |
A05 |
| AB15: 14%-18% chrome white iron |
≥59 |
Used for higher wear condition |
A07 |
| AB29: 27%-29% chrome white iron |
43 |
Used for lower pH condition especially for FGD. It also can be used for low-sour condition and desulfuration installation with pH no less than 4 |
A49 |
| AB33: 33%-37% chrome white iron |
|
It can transport oxygenated slurry with pH not be less than 1 such as phospor-plaster, nitric acid, vil, phosphate etc. |
A33 |
| Expeller & expeller ring |
Metal |
B27: 23%-30% chrome white iron |
≥56 |
Used for higher wear condition with pH between 5 and 12 |
A05 |
| Grey iron |
|
|
G01 |
| Shaft |
Metal |
Carbon steel |
|
|
E05 |
| Shaft sleeve, lantern ring/resctrictor, neck ring, gland bolt |
Stainless steel |
4Cr13 |
|
|
C21 |
| 304 SS |
|
|
C22 |
| 316 SS |
|
|
C23 |
| Joint rings & seals |
Rubber |
Butyl |
|
|
S21 |
| EPDM rubber |
|
|
S01 |
| Nitrile |
|
|
S10 |
| Hypalon |
|
|
S31 |
| Neoprene |
|
|
S44/S42 |
| Viton |
|
|
S50 |
| parts name |
Pump model |
| B1110 |
1.5/1 B- |
| B15110 |
2/1.5 B- |
| C2110 |
3/2 C- |
| D3110 |
4/3 C-, 4/3 D- |
| HS E4110 |
6/4 D-, 6/4 E- |
| F6110 |
8/6 E-, 8/6 F- |
| G8110 |
10/8 F-, 10/8 ST- |
| G10110 |
12/10 F-, 12/10 ST- |
| G12110 |
14/12 F-, 14/12 ST- |
| BL5110 |
50 B-L |
| CL75110 |
75 C-L |
| DL10110 |
100 D-L |
| EL15110 |
150 E-L |
| F8110 |
10/8 E-M, 10/8 F-M |
| F10110 |
12/10 E-M, 12/10 F-M |
| SL30110 |
300 S-L |
| CH1110 |
1.5/1 C-HH |
| DH2110 |
3/2 D-HH |
| EH3110 |
4/3 E-HH |
| FH4110 |
6/4 F-HH |
| FP6110 |
8/6 S-P |
