Chrome Alloy River Sand And Gravel Pump For Transporting Sand Wear Resistant

Chrome Alloy River Sand And Gravel Pump For Transporting Sand Wear Resistant

Pump Features

1. SHIZA brand G(GH) pump is horizontal single case centrifugal pump.

2. G type pump use clamp band design for pump case

2. The discharge direction can be oriented in 8 direction at interval of 45 degrees.

4. The wet-parts of GH pump is high chromium A05 material with highhardness ,hardness is higher than

    58 HRC, the service life is long.

5. GH pump bearing parts use cylindrical structure, easy to adjust the gap between the impeller and

    pump  body.

6. Shaft sealing for GH pump can be : packing seal, expeller seal and mechanical seal for your

   selection.

7. Type G(or GH) gravel pumps are designed for handling the most difficult high abrasive slurry which       contain too big solids to be pumped by a common slurry pump . They are suitable for delivering

     slurries in mining.Explosive sludge in metal melting ,.dredging in dredger and river course.

8. It can be equipped with diesel engines or be equipped with motor driven directly. After the

    overflow part impeller, the pump body, front the guard shield, the guard shield uses the

    strong antifriction alloy cast iron

Application fields

 SHIZA brand dredging pump are widely used in the port dredging reclamation all over the our country's rivers and lakes, such  as the Yangtze River, Yellow River, Liaohe River, Pearl River, Huaihe River, etc.

Type meaning for dredge pump

10/8F-G(H)

10----------------pump inlet size (inch )

8----------------pump outlet size (inch)

G----------------G gravel pump

H----------------High head gravel pump

Performance table:

sand pumping equipment

centrifugal dewatering pump

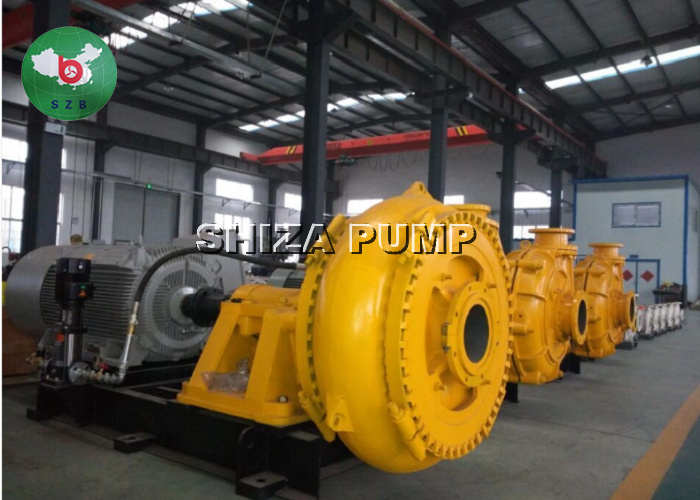

Chrome Alloy River Sand And Gravel Pump For Transporting Sand Wear Resistant Images
